End cleaning for smaller pipe

new time:2015/5/5 11:11:31

Function description: The end cleaning device includes 2 sets of end-supporting pipe, 2 sets of end-cutting trolleys and other pneumatic, hydraulic, electrical control system, smooth surface solid tires supporter. The motor drives the end-supporting cars to  fine-tune that can assures the rotating of the pipe steadily, High-speed rotating steel brush driven  by the end-cutting cars brushes off the pipe-end anti-corrosion coating layer, High efficiency dust removal system sucks away the plastic dust that is cut down by the steel brush so that can assures the working environment clean.

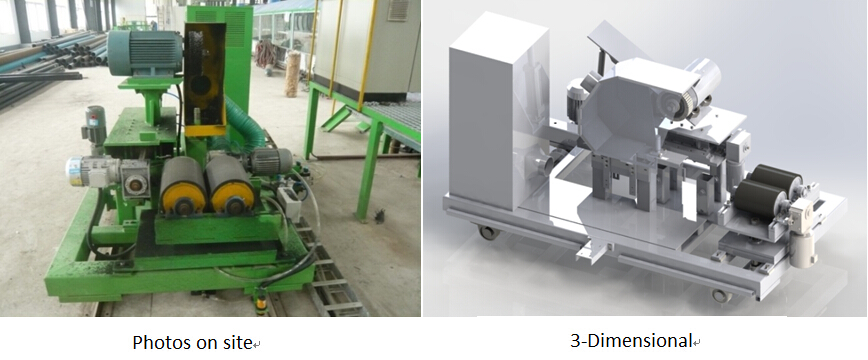

Each decomposition figure


Technical Parameter

S.N.

Walking motor

Technical Parameter

1

Walking motor

1.1kW

2

Polishing motor

0.75kW

3

Stroke adjustment motor

0.75kW

4

Rotation pipe motor

0.75kW

5

Dust remover

LDFL-1000

6

Adjustable pipe diameter

Any diameter that under 219
